Suitable for parts machining in various industries, in pursuit of the basic functions of the gang-type tool post model

Max.machining diameter
Tool Post
Max.headstock stroke

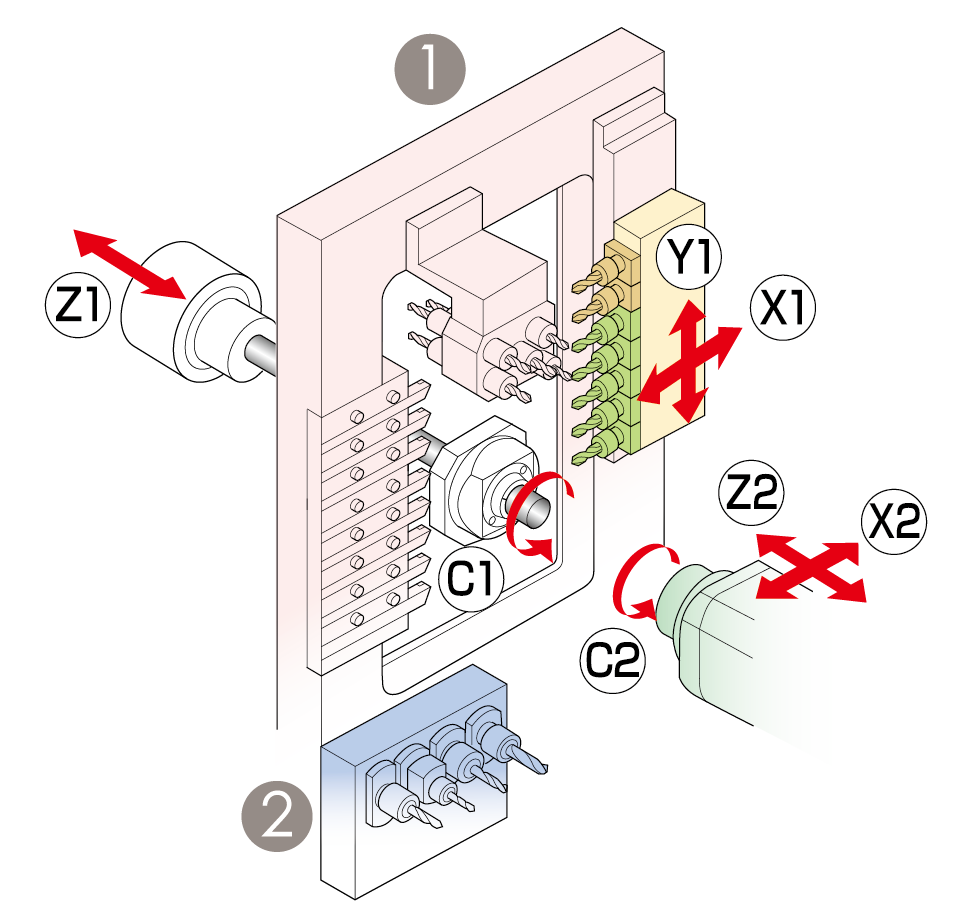

Tool Post Tooling
① Turning tool(□12mm) 8 tools
Turning tool(□16mm,□12mm) 7 tools
Front-end working tool 4 tools
Front-end working tool(Φ32,Φ22) 4 tools
Rear-end working tool(Φ22) 5 tools
Power-driven tool 7 tools
② Rear-end working tool 4 tools
Stationary tool max. 4 tools
powered tool max. 4 tools
Item SP-20
Max.machining diameter ø 23mm(29/32in) OP : ø 25.4mm(1in)
Max.headstock stroke Standard 205mm(8in) MR25 : 196mm(7-15/16in)
R.M.G.B.type 155mm(6-3/32in)
N.G.B.type Bar diameter×2.5(Max.50mm) (Max.1-31/32in)
Tool 8 tools(□12mm)
7 tools(□16mm×3,□12mm×4)
sleeve holder Number of tools 4 tools(ø 32×2,ø 22×2)
5 tools(ø 22×5)
Max.drilling capability ø 12mm(1/2in) OP : ø 13mm(33/64in)
Max.tapping capability M10×P1.5(OP : M12×P1.75)
Power-driven attachment Number of tools Cross drilling × 2 tools+cartridge type 5pos.
Max.drilling capability ø8mm(ø5/16in)
Max.tapping capability M6×P1.0
Main spindle indexing angle C-axis control
Main spindle speed max.10,000min-1(OP : Max.8,000min-1)
Main spindle motor 2.2kW(CONT.)/ 3.7kW(15min./60%ED)
Rapid feed rate 35m/min(X1,Y1,Z1,X2,Z2)
Power-driven att.spindle speed max.8,000min-1
Power-driven att.drive moter 1.4kW
Coolant tank capability 190ℓ
Dimensions (W×D×H) 2,100×1,200×1,785mm
Weight 2,250kg
Power consumption 5.52kVA
A-weighted sound pressure : note-1 Max.67dB(A)
Item SP-20
Max.chucking diameter ø 23mm(29/32in) OP : ø 25.4mm(1in)
Max.length for front ejection 105mm(4-9/64in)
Max.parts projection length 30mm(1-3/16in)
4-spindle
backworking
unit		 Number of tools Stationary tool Max.4 tools
Power driven tool Max.4 tools
Max.drilling capability Stationary tool ø8mm(5/16in) OP : 10mm(25/64in)
Power driven tool ø6mm(15/64in)
Max.tapping capability Stationary tool M6×P1.0(OP : M8×P1.25)
Power driven tool M5×P0.8
Power-driven att.spindle speed max.8,000min-1
Power-driven att.drive moter 0.75kW
Sub spindle indexing angle C-axis control
Sub spindle speed max.10,000min-1(OP : Max.8,000min-1)
Sub spindle motor 1.5kW(CONT.)/ 2.2kW(15min./60%ED)

Standard Accessories and Functions

  1. CNC unit FANUC 0i-TF Plus
  2. Operation panel 10.4-inch color LCD display
  3. Pneumatic unit
  4. Coolant level detector
  5. Automatic centralized lubrication unit
  6. Door interlock system
  7. Broken cutoff tool detector
  8. Water removal unit
  9. Cs contouring control (Main/Sub)
  10. Spindle clamp unit (Main / Sub)
  11. Revolving guide bush unit
  12. Drive unit for revolving guide bush
  13. Air purge for revolving guide bush
  14. Main / Sub collet
  15. Tool holder (7-station or 8-station)
  16. Sleeve holder (4-spindle or 5-spindle)
  17. 7-spindle cross drilling unit
  18. Sub spindle air purge unit
  19. Sub spindle air blow unit
  20. 4-spindle backworking unit
  21. Drive unit for power-driven attachment (4-spindle backworking unit)
  22. Work light
  23. Leakage breake

Optional Accessories and Functions

  1. Torque up specification (main/sub)
  2. Coolant flow detector
  3. Beacon
  4. Parts conveyor
  5. Built-in stocker
  6. Product separator system, A-type
  7. Main spindle inner tube
  8. Parts ejector with Spring type
  9. Parts ejector (Air cylinder type)
  10. Parts ejector with guide tube
  11. Parts stopper unit
  12. Coolant unit (2.5MPa / 6.9MPa)
  13. Coolant unit signal cable
  14. Coolant unit power cable
  15. Coolant valve (2.5MPa / 6.9MPa)
  16. Coolant pipings
  17. Automatic bar feeder interface
  18. LAN/RS232C interface
  19. Transformer
  20. Transformer CE marking version
  21. Transformer CE marking-version cable
  22. CE / UKCA marking specifications
