Max. machining diameter is 38mm! Complex machining for extra large parts with high speed and universal control.

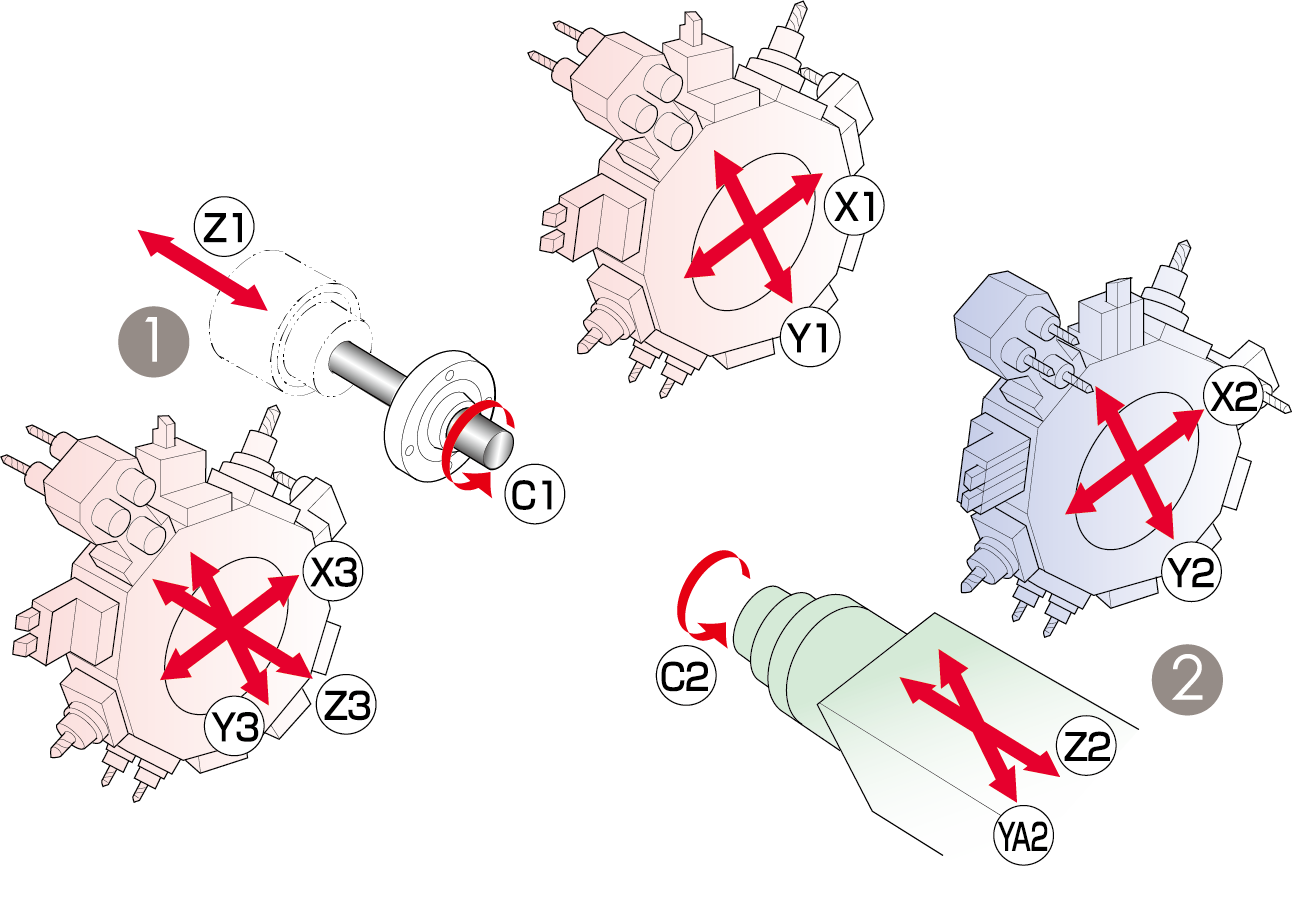

Max.machining diameter
Tool Post
Max.headstock stroke
Tool Post Tooling
①
Turning tool max.2 tools/station
(□16mm)
Front-end working tool max.3 tools/station
Rear-end working tool max.3 tools/station
Power-driven tool max.2 tools/station
②
Turning tool max.2 tools/station
(□16mm)
Back working tool max.3 tools/station
Power-driven tool max.2 tools/station
Item ST-38
Max.machining diameter ø38mm(1-1/2in)
Max.headstock stroke Standard 350mm(13-25/32in)
R.M.G.B.unit 315mm(12-13/32in)
Front turret tool post Front 10 stations
Rear 10 stations
Turning tool 1 tool/station(□20mm) ,
max.2 tools/station(□16mm)
Sleeve holder Number of tools max.3 tools/station
Max.drilling capability ø23mm(29/32in)
Max.tapping capability M16×P2.0
Power-driven att. Number of tools max.2 tools/station
Max.drilling capability ø10mm(25/64in)
Max.tapping capability M8×P1.25
Spindle speed max.5,700min-1
Drive motor 2.7kw(Continuous) / 4.0kw(5min./30%ED)
Rapid feed rate 30m/min(X1,Z1,X2,Z2,X3,Z3)
15m/min(Y1,Y2,Y3) , 3.9m/min(YA2)
Main spindle indexing angle C-axis control
Main spindle speed max.7,000min-1
Main spindle motor 7.5kw(Continuous) / 11.0kw(10min./25%ED)
Dimensions (W×D×H) 3,477×1,859×1,865mm
Weight 6,250kg
Power consumption 10.5KVA
Item ST-38
Max.chucking diameter ø38mm(1-1/2in)
Max. length for front ejection 150mm(5-7/8in)
Max.work projection length 75mm(2-61/64in)
Back working turret tool post 10 stations
Turning tool 1 tool/station(□20mm) ,
max.2 tools/station(□16mm)
Sleeve holder Number of tools max.3 tools/station
Max.drilling capability ø23mm(29/32in)
Max.tapping capability M12×P1.75
Power-driven att. Number of tools max.2 tools/station
Max.drilling capability ø10mm(25/64in)
Max.tapping capability M8×P1.25
Sub spindle indexing angle C-axis control
Sub spindle speed max.7,000min-1
Sub spindle motor 5.5kw(Continuous) / 7.5kw(10min./40%ED)

Standard Accessories and Functions

  1. CNC unit FANUC 31i-B5
  2. Operation panel 10.4-inch color LCD display
  3. Hydraulic unit
  4. Pneumatic unit
  5. Automatic centralized lubrication unit
  6. Coolant level detector
  7. Door interlock system
  8. Broken cutoff tool detector
  9. Drive unit for revolving guide bush
  10. Revolving guide bush unit
  11. Main/Sub collet
  12. C-axis control (Main/Sub)
  13. Spindle clamp unit (Main/Sub)
  14. Main spindle cooling unit
  15. Coolant chiller
  16. Drive system for power-driven attachment (Turret)
  17. Air purge for revolving guide bush
  18. Sub spindle air purge unit
  19. Parts separator
  20. Parts conveyor
  21. Automatic bar feeder interface
  22. High-pressure coolant unit interface
  23. Work light
  24. Leakage breaker

Optional Accessories and Functions

  1. Coolant flow detector
  2. Water removal unit
  3. Beacon
  4. Rotary magic guide bush unit
  5. For pneumatic unit rotary magic guide bush
  6. Parts ejector (Air cylinder type)
  7. Parts ejector (Spring type)
  8. Parts ejector with guide tube
  9. Parts stopper unit
  10. Coolant unit (6.9MPa/2.5MPa/0.7MPa)
  11. Coolant valve
  12. Coolant pipings
  13. Manual pulse generator
  14. Transformer CE marking version
  15. Transformer CE marking specifications
  16. Tool presetter
