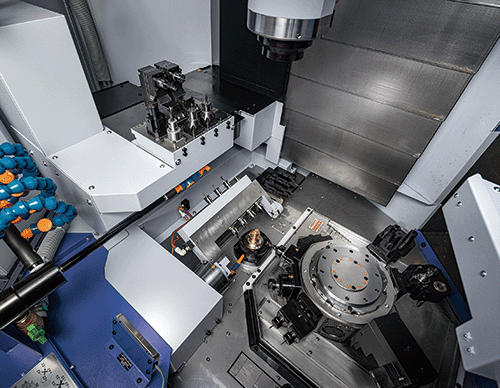

The latest model is of the highest quality in all aspects of the 38-dia. class.

Max.machining diameter
Tool Post
Max.headstock stroke

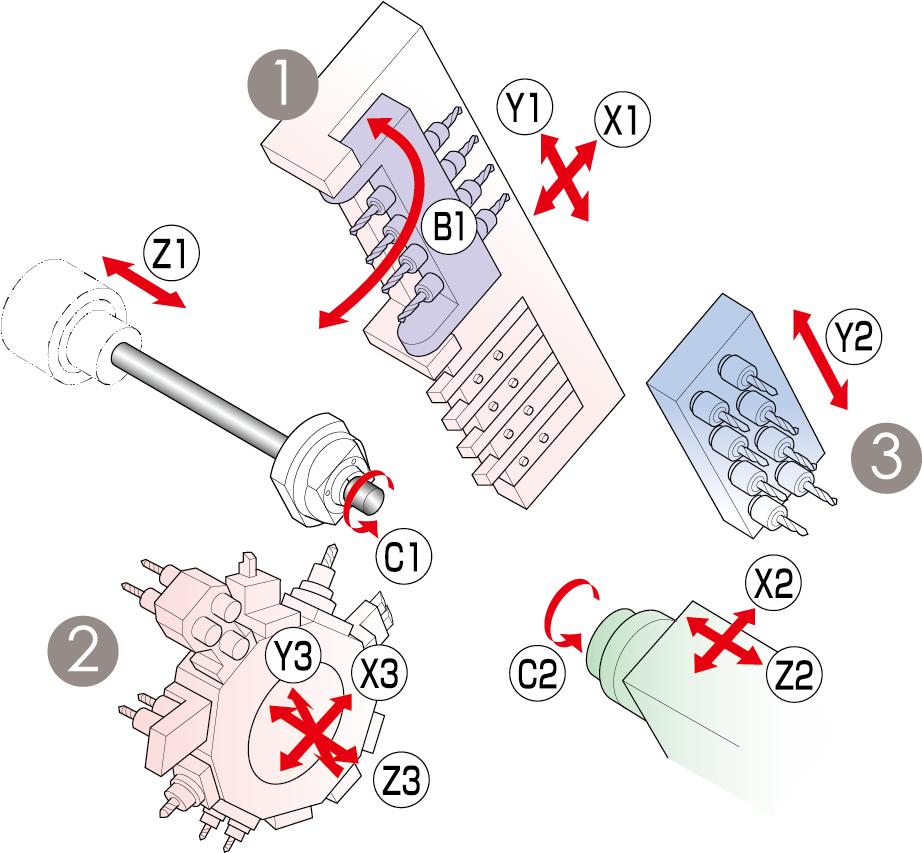

Tool Post Tooling
①
Turning tool(□20mm) 1 tool
Turning tool(□16mm) 3 tools
Front power driven(ER20) 4 tools
Rear power driven (ER16) 4 tools
②
Turret toolpost type type A Quick change way
type B One position tool drive way
Turning tool(□20mm) 1tool/station
Turning tool(□16mm) max.2tools/station
Front-end working tool max.3tools/station
Rear-end working tool max.3tools/station
Power-driven tool max.2tools/station
③
Rear-end working tool 8tools
Stationary tool max.8tools
Power-driven tool max.8tools
Item SX-38 type A/B
Max.machining diameter Revolving G.B. ø38mm (1-1/2 in)
N.G.B.type ø42mm (1-21/32 in)
Max.headstock stroke Standard 320mm (12-19/32 in)
R.M.G.B.unit OP 289mm (11-3/8 in)
N.G.B.type 95mm (3-47/64 in)
Tool post configuration Gang type Turning tool + Power-driven tool
Turret type 10 stations turret tool post
Number of turning tools Gang type 4 tools (□20mm×1 tool+□16mm×3 tools)
Turret type □20mm: 1 tool/station,
□16mm: 2 tools/station
Sleeve holder Number of tools max.3 tools/station
Max.drilling capability ø23mm (29/32 in)
Max.tapping capability M16×P2.0
Power-driven att. Number of tools Gang type Power-driven tool with B-axis : 8 tools
(Front 4 tools + Rear 4 tools)
Turret type max.2tools/station
Max.drilling capability Gang type ø10mm(25/64 in)
Turret type ø10mm(25/64 in)
Max.tapping capability Gang type M8×P1.25
Turret type M8×P1.25
Spindle speed Gang type max.6,000min-1
Turret type max.5,700min-1
Drive motor Gang type 2.2 kw(Continuous)/ 3.0 kw( 5 min./ 30 %ED)
Turret type 2.7 kw(Continuous)/ 4.0 kw( 5 min./ 30 %ED)
Rapid feed rate 30m/min (X1,X2,X3,Y1,Z1,Z2,Z3)
24m/min (Y2)
15m/min (Y3)
Main spindle indexing angle C-axis control
Main spindle speed max.7,000 min-1
Main spindle motor 7.5 kw(Continuous)/ 11.0 kw( 10 min./ 25 %ED)
Dimensions (W×D×H) 2,955 × 1,430 × 1,975 mm
Weight 5,800kg
Power consumption 14.4 KVA
Item SX-38 type A/B
Max.chucking diameter ø38mm (1-1/2 in)
Max.length for front ejection 150mm (5-7/8 in)
Max.work projection length 75mm (2-61/64 in)
8 spindle backworking unit Number of tools 8 tools
Max.drilling capability Stationary tool ø23mm (29/32 in)
Power-driven att. ø10mm (25/64 in)
Max.tapping capability Stationary tool M16×P2.0
Power-driven att. M8×P1.25
Sub spindle indexing angle C-axis control
Sub spindle speed max.7,000min-1
Sub spindle motor 7.5 kw(Continuous)/ 11.0 kw(10min./25%ED)

Standard Accessories and Functions

  1. CNC unit FANUC 311-85
  2. Operation panel 10.4-inch color LCD display
  3. Manual pulse generator
  4. Hydraulic unit
  5. Pneumatic unit
  6. Automatic centralized lubrication unit
  7. Coolant level detector
  8. Door interlock system
  9. Broken cutoff tool detector
  10. Drive unit for revolving guide bush
  11. Revolving guide bush unit
  12. Air purge for revolving guide bush
  13. Main / Sub collet
  14. C-axis control (Main/Sub)
  15. Spindle clamp unit (Main/Sub
  16. Gang-type tool holder for fixed 4 tools (20 mm: 1 tool, 16 mm: 3 tools)
  17. 4-spindle counter face milling unit with B-axis control function
  18. B-axis clamp unit
  19. 10-position turret-type tool post
  20. Turret-type tool post tool drive unit
  21. Sub spindle air purge unit
  22. Drive system for power-driven attachment (8-spindle back working unit)
  23. 8-spindle back working unit tool drive unit
  24. spindle cooling unit
  25. Parts conveyor
  26. Automatic bar feeder interface
  27. LAN/RS-232C interface
  28. Work light

Optional Accessories and Functions

  1. Coolant flow detector
  2. Parts ejection detector
  3. Water removal unit
  4. Beacon
  5. Non-guide bush type
  6. Rotary magic guide bush unit
  7. For pneumatic unit rotary magic guide bus
  8. Parts receptacle in the machine
  9. Parts ejector (Spring type rotary ver.)
  10. Parts ejector (Air cylinder type)
  11. Parts ejector with guide tube
  12. Parts catcher
  13. Product separator
  14. Parts receptacle
  15. Chip conveyor, hinge-type
  16. Coolant tank.
  17. Coolant unit (6.9MPa/2.5MPa/0.7MPa)
  18. Coolant unit signal cable
  19. Coolant unit power cable
  20. Coolant valve (6.9MPa/2.5MPa)
  21. Coolant pipings
  22. Relocation detection device
  23. 1/0 module extension unit
  24. Transformer CE marking version
  25. CE marking
  26. Tool Presetter
