SBシリーズ

SR-32JIII

Increased flexibility in response to market demands for greater capability for large diameter machining.

Max.machining diameter

Tool Post

Max.headstock stroke

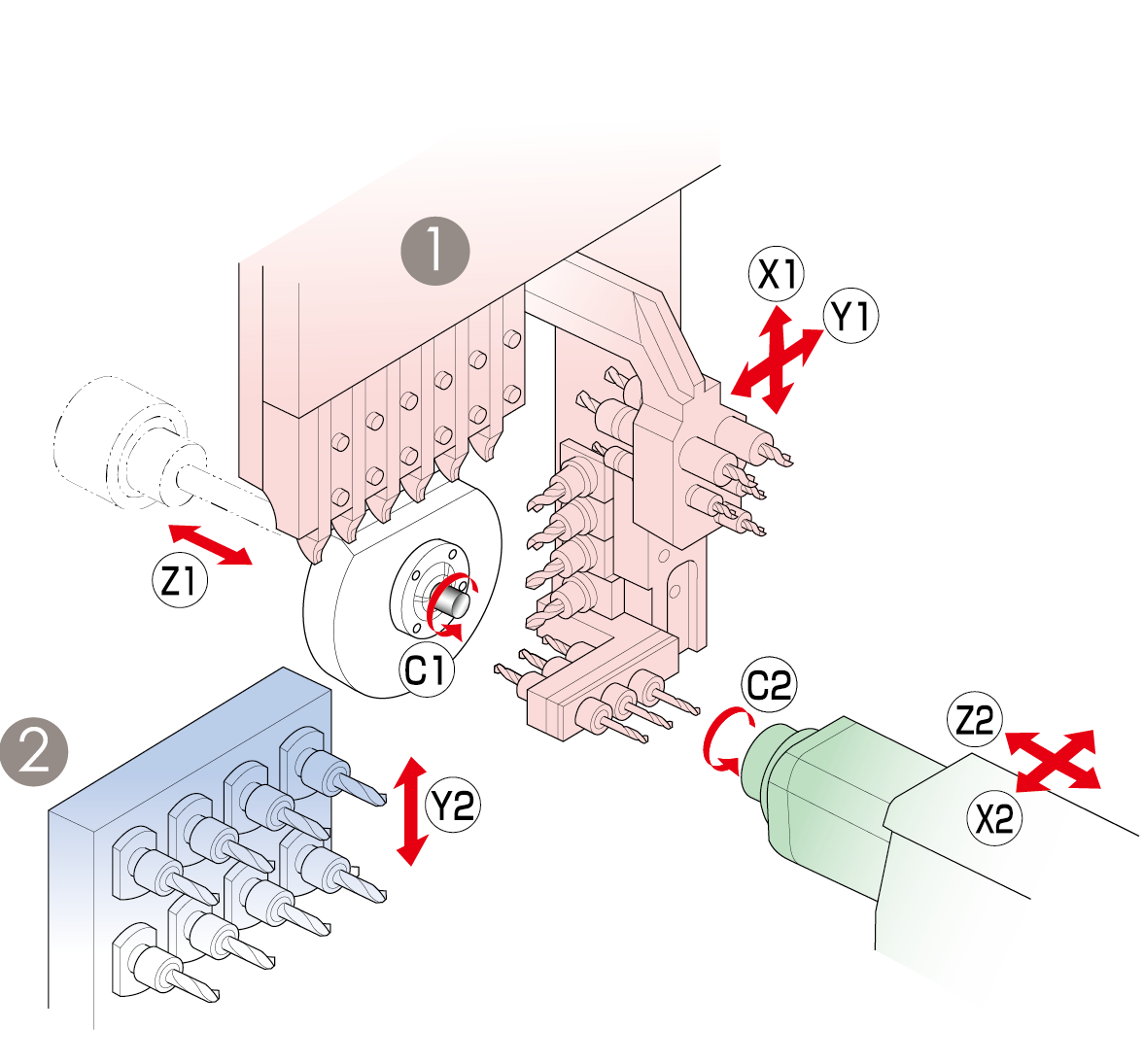

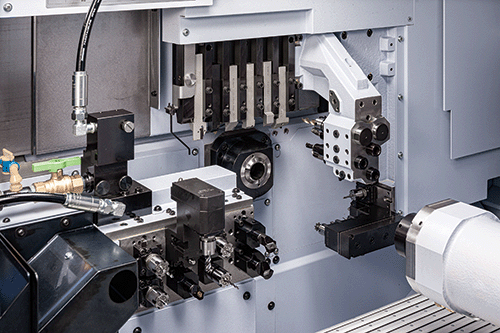

	Tool Post	Tooling
①	5-Spindle cross drilling unit	Turning tool	6 tools
		Front-end working tool	5 tools
		Rear-end working tool	5 tools
		Power-driven tool	3 tools
		Cartridge type	2 Pos.
	6-Spindle cross drilling unit	Turning tool	6 tools
		Front-end working tool	5 tools
		Rear-end working tool	5 tools
		Power-driven tool	6 tools
		Cartridge type
②	*Type B	Rear-end working tool	8 tools
		Stationary tool	max.8 tools
		Power-driven tool	max.8 tools
	*Type A	Rear-end working tool	6 tools
		Stationary tool	max.6 tools
		Power-driven tool	max.6 tools

Item			SR-32JⅢ
Max.machining diameter		Standard	ø 32mm (1-1/4 in)
Max.headstock stroke	Standard		320mm (12-19/32 in)
	R.M.G.B.unit		286.5mm (11-9/32 in)
	N.G.B.type		80mm (3-5/32 in)
Number of turning tools			6 tools(☐16mm)
5-spindle sleeve holder	Number of tools		Front : 5 tools
	Number of tools		Rear : 5 tools
	Max.drilling capability		ø 13mm (33/64 in)
	Max.tapping capability		M12 × P1.75
Power-driven att.	Number of tools		3-15 tools (Option is included)
	Max.drilling capability		ø 10mm (25/64 in)
	Max.tapping capability		M8 × P1.25
	Spindle speed	Cross milling	max.6,000min^-1
	Spindle speed	Cartridge-type tool	max.8,000min^-1
	Drive motor		2.2kw(Continuous)/4.0kw(5min./30%ED)
Rapid feed rate			35m/min(X1,X2,Y1,Z1,Z2)
Rapid feed rate			24m/min(Y2) Type B
Main spindle indexing angle			C-axis control
Main spindle speed			max.8,000min^-1
Main spindle motor			7.5kw(Continuous)/11.0kw(10min./25%ED)
Dimensions (W×D×H)			2,690 × 1,345 × 1,780 mm
Weight			4,100 kg
Power consumption			8.8KVA

Item			SR-32JⅢ
Max.chucking diameter			ø 32mm (1-1/4 in)
Max.length for front ejection			125mm (4-59/64 in)
Max.work projection length			45mm (1-49/64 in)
Backworking unit	Number of tools		6-8 tools (type A:6tools, type B:8tools)
	Max.drilling capability	Stationary tool	ø 13mm (33/64 in)
	Max.drilling capability	Power-driven att.	ø 8mm (5/16 in)
	Max.tapping capability	Stationary tool	M10 × P1.5
	Max.tapping capability	Power-driven att.	M6 × P1.0
Sub spindle indexing angle			C-axis control
Sub spindle speed			max.8,000min^-1
Sub spindle motor			3.7kw(Continuous)/5.5kw(10min./40%ED)

Standard Accessories and Functions

CNC unit FANUC 32i-B
Operation panel 10.4-inch color LCD display
Manual pulse generator
Pneumatic unit
Hydraulic unit
Coolant level detector
Automatic centralized lubrication unit
Door interlock system
Cs contouring control (Main / Sub)
Spindle clamp unit (Main / Sub)
Spindle cooling unit
Revolving guide bush unit
Drive unit for revolving guide bush
Air purge for revolving guide bush
Main / Sub collet
6-station tool holder 16mm
Cross drilling unit (Cartridge type-5-spindle/6-spindle, special tool for cross drilling unit-6-spindle)
5-spindle sleeve holder
Broken cutoff tool detector
Backworking attachment
Back 6-spindle unit *type A
8-spindle backworking unit with Y axis control function *type B
Drive unit for power-driven (8-spindle backworking unit) *type B
Sub spindle air purge unit
Parts conveyor
Work light
Leakage breake

Optional Accessories and Functions

Coolant flow detector
Water removal unit
Oil mist filter
Beacon
Main spindle inner tube
Rotary magic guide bush unit
Non-guide bush type
Feed arrow steady rest
Drive unit for power-driven attachment B *type A Only
Parts ejector (Spring type)
Parts ejector (Air cylinder type)
Parts ejector with guide tube
Parts stopper unit
Coolant unit (6.9MPa/2.5MPa/0.7MPa)
Coolant unit signal cable
Coolant unit power cable
Coolant valve
Coolant pipings
Automatic bar feeder interface
LAN/RS232C interface
Transformer
Transformer CE marking version
Transformer CE marking specifications
