SW-12RII heading for the highest capability in machining of small diameter workpieces.

Max.machining diameter
Tool Post
Max.headstock stroke

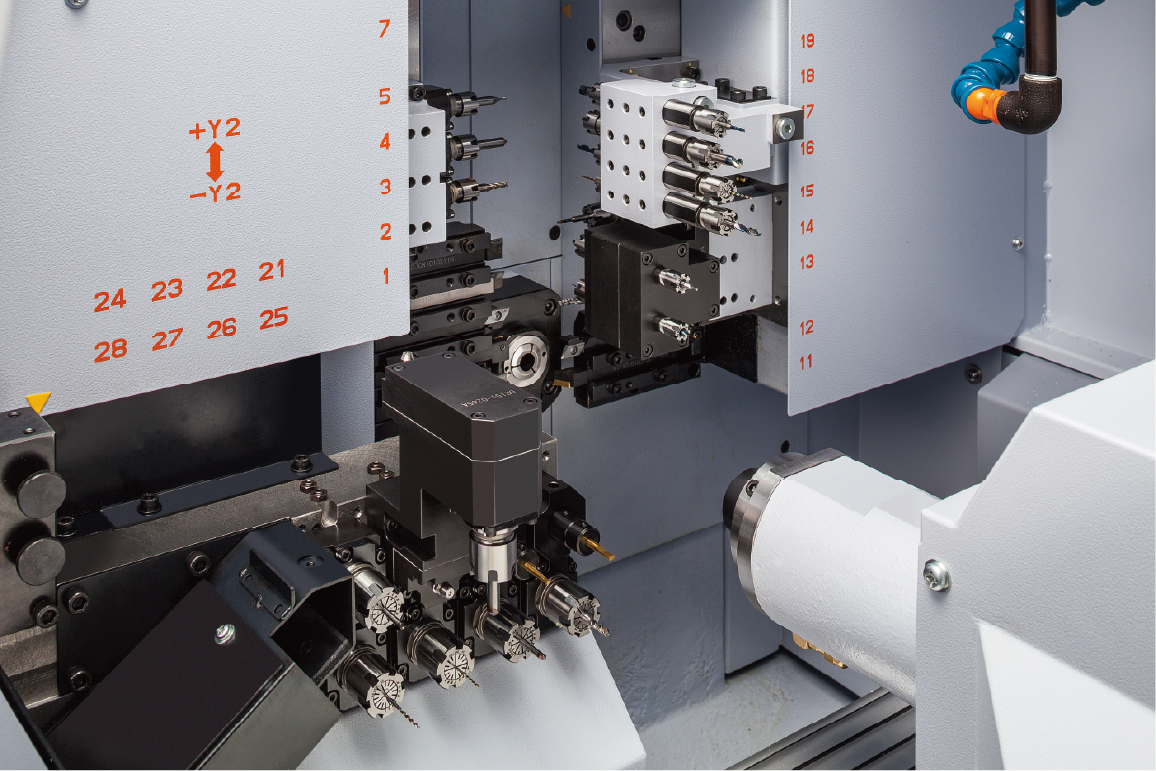

Tool Post Tooling

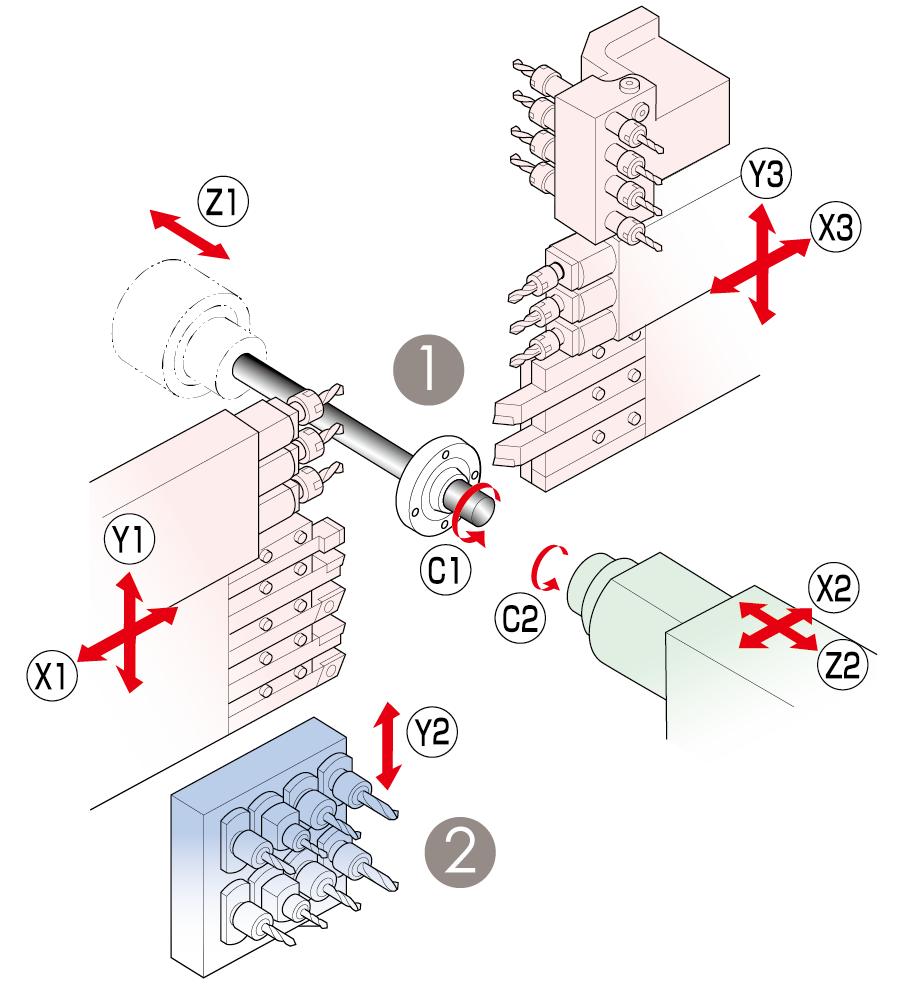

①
Turning tool 7 tools
Front-end working tool 4 tools
Rear-end working tool 4 tools
Power-driven tool 6 tools
②
Rear-end working tool 8 tools
Stationary tool max.8 tools
Power-driven tool max.6 tools
Item SW-12RII
Max.machining diameter ø 13mm (33/64in)
Max.headstock stroke Standard 135mm (5-5/16in)
N.G.B.type 30mm (1-3/16in)
Tool post configuration Front Turning tool + Power-driven tool
Rear Turning tool + 4-spindle sleeve holder+ Power-driven tool
Number of turning tools Front 5 tools (□10mm)
Rear 2 tools (□10mm)
4-spindle
sleeve holder		 Number of tools Front : 4 tools
Rear : 4 tools
Max.drilling capability ø 8mm(5/16in)
Max.tapping capability M8 × P1.25
Power-driven att. Number of tools Front 3 pos.
Rear 3 pos.
Max.drilling capability ø 5mm (3/16in)
Max.tapping capability M4 × P0.7
Spindle speed max.12,000min-1
Drive motor 1.0kw (Continuous) / 1.2kw (5min/30%ED)
Rapid feed rate 35m/min(Y1,Z1,Y3,X2,Z2)
24m/min(X1,X3)
15m/min(Y2)
Main spindle indexing angle C-axis control
Main spindle speed max.15,000min-1
Main spindle motor 2.2kw (Continuous) / 3.7kw (10min/25%ED)
Dimensions (W×D×H) 1,995 × 920 × 1,700mm
Weight 2,100kg
Power consumption 4.4KVA
Item SW-12RII
Max.chucking diameter ø 13mm (33/64in)
Max.length for front ejection 80mm (3-5/32in)
Max.work projection length 20mm (25/32in)
8-spindle unit Number of tools 8 tools
Max.drilling capability Stationary tool ø 8mm (5/16in)
Power-driven att. ø 5mm (3/16in)
Max.tapping capabilily Stationary tool M6 × P1.0
Power-driven att. M4 ×P0.7
Sub spindle indexing angle C-axis control
Sub spindle speed max.15,000min-1
Sub spindle motor 2.2kw (Continuous)
/ 3.7kw (10min./25%ED)

Standard Accessories and Functions

  1. CNC unit FANUC 31i-B5
  2. Operation panel 10.4-inch color LCD display
  3. Pneumatic unit
  4. Automatic centralized lubrication unit
  5. Coolant level detector
  6. Door interlock system
  7. Broken cut-off tool detector
  8. Parts ejection detector
  9. Drive unit for revolving guide bush
  10. Revolving guide bush unit
  11. Cs contouring control (main/sub)
  12. Spindle clamp unit (main/sub)
  13. Main/Sub collet
  14. 5-station tool holder 10mm
  15. 2-station tool holder 10mm
  16. Drive unit for power-driven attachment (front/rear)
  17. 4-spindle sleeve holder
  18. 8-spindle backworking unit with Y axis control function
  19. Drive unit for power-driven attachment (8-spindle backworking unit)
  20. Air purge unit for revolving guide bush
  21. Sub spindle air purge unit
  22. Automatic bar feeder interface
  23. RS-232C interface
  24. Work light
  25. Leakage breaker

Optional Accessories and Functions

  1. Coolant flow detector
  2. Water removal unit
  3. Beacon
  4. Rotary magic guide bush unit
  5. For pneumatic unit rotary magic guide bush
  6. Guide bush mount
  7. Parts conveyor
  8. Parts receptacle
  9. Parts separator unit A
  10. Main spindle inner tube
  11. Sub spindle air blow unit
  12. Parts ejector (Spring type)
  13. Parts ejector (Air cylinder type)
  14. Parts ejector with guide tube
  15. Parts stopper unit
  16. Coolant unit (6.9MPa/2.5MPa/0.7MPa)
  17. Coolant unit signal cable
  18. Coolant unit power cable
  19. Coolant valve
  20. Coolant pipings
  21. Transformer
  22. Transformer CE marking version
  23. Cable for CE marking version
  24. CE marking version
