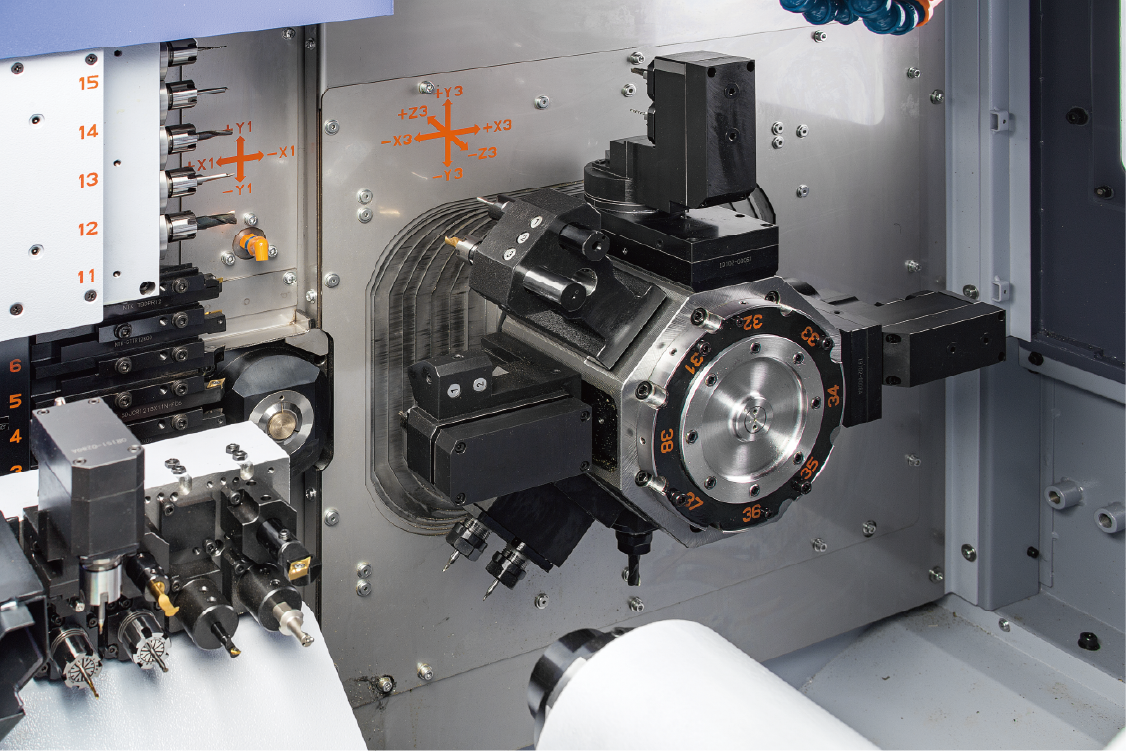

The above composition of the tool post reassures enhanced scalability for complex machining with adequate number of tools.

Max.machining diameter
Tool Post
Max.headstock stroke

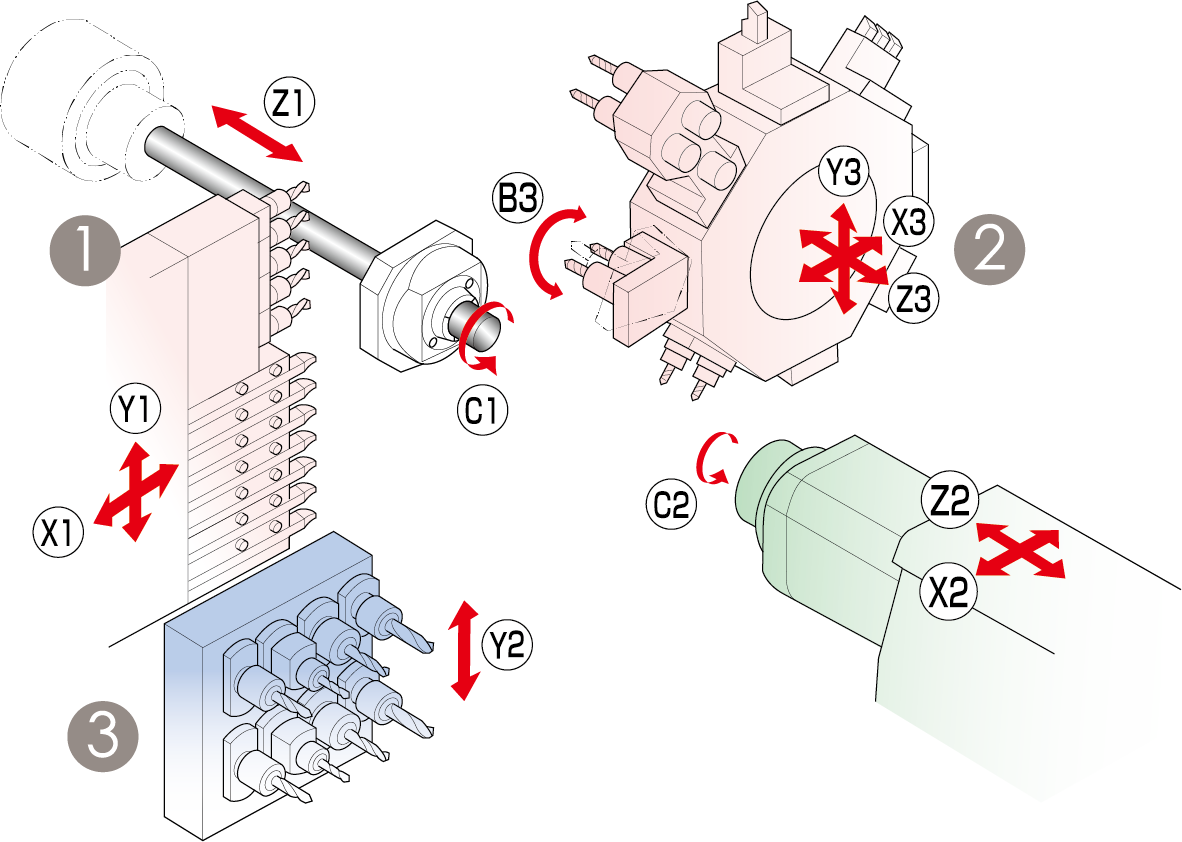

Tool Post Tooling
①
Turning tool(☐16mm) 6 tools
Turning tool(☐12mm) 7 tools
Power-driven tool 5 tools
②
Turning tool(☐16mm) 1 tool/station
Turning tool(☐12mm) max.3 tools/station
Front-end working tool max.3 tools/station
Rear-end working tool max.3 tools/station
Power-driven tool max.2 tools/station
③
Rear-end working tool 8 tools
Stationary tool max.8 tools
Power-driven tool max.8 tools
Item SV-20R
Max.machining diameter Revolving G.B. ø 20mm (25/32 in)
N.G.B.type ø 20mm (25/32 in)
Max.headstock stroke Standard 205mm (8 in)
R.M.G.B.unit 160mm (6-19/64 in)
N.G.B.type max.50mm (1-31/32 in)
Tool post configuration Gang type Turning tool + Power-driven tool
Turret type 8 stations turret tool post
Number of turning tools Gang type 6 tools(☐16mm) / 7 tools(☐12mm)
Turret type 1 tool/station(☐16mm)、
max.3 tools/station(☐12mm)
Sleeve holder Number of tools max.3 tools/station
Max.drilling capability ø 14mm (35/64 in)
Max.tapping capability M12 × P1.75
Power-driven att. Number of tools Gang type 5 tools
Turret type max.2 tools/station
Max.drilling capability Gang type ø 10mm (25/64 in)
Turret type ø 10mm (25/64 in)
Max.tapping capability Gang type M8 × P1.25
Turret type M8 × P1.25
Spindle speed Gang type max.8,000min-1
Turret type max.5,750min-1
Drive motor Gang type 2.2kw(Continuous)
Turret type 2.7kw(Continuous)/4.0kw(5min./30%ED)
Rapid feed rate 30m/min(X1,Y1,Z1,X2,Z2,X3,Z3)
20m/min(Y2)、15m/min(Y3)
Main spindle indexing angle C-axis control
Main spindle speed max.10,000min-1
Main spindle motor 3.7kw(Continuous)/5.5kw(10min./60%ED)
Dimensions (W×D×H) 2,730 × 1,350 × 1,865mm
Weight 4,150kg
Power consumption 6.3KVA
Item SV-20R
Max.chucking diameter ø 20mm (25/32 in)
Max.length for front ejection 105mm (4-9/64 in)
Max.work projection length 75mm (2-61/64 in)
8 spindle backworking unit Number of tools 8 tools
Max.drilling capability Stationary tool ø 12mm (1/2 in)
Power-driven att. ø 6mm (15/64 in)
Max.tapping capability Stationary tool M10 × P1.5
Power-driven att. M5 × P0.8
Sub spindle indexing angle C-axis control
Sub spindle speed max.10,000min-1
Sub spindle motor 2.2kw(Continuous)/3.7kw(10min./25%ED)

Standard Accessories and Functions

  1. CNC unit FANUC 31i-B5
  2. Power electric & Operation panel & 10.4-inch color LCD
  3. Pneumatic unit
  4. Hydraulic unit
  5. Spindle cooling unit
  6. Automatic centralized lubrication system (with level detecting function)
  7. Cutting oil level (lower limit) detecting unit
  8. Door interlock system
  9. Broken cutoff tool detector
  10. C-axis control (Main / Sub)
  11. Spindle clamp unit (Main / Sub)
  12. Drive unit for revolving guide bush
  13. Revolving guide bush unit
  14. Main/Sub collet
  15. Air purge for revolving guide bush
  16. Sub spindle air purge unit
  17. Tool holder (Gang-type tool post)
  18. 5-spindle milling unit (Gang-type tool post)
  19. Drive system for power-driven attachment (Turret-type tool post)
  20. Back 8-spindle unit
  21. Drive system for power-driven attachment B (Back 8-spindle unit)
  22. Parts conveyor
  23. Automatic bar feeder interface
  24. RS232C interface
  25. Work light (for cutting chamber and headstock chamber)
  26. Leakage breaker

Optional Accessories and Functions

  1. Coolant flow detector
  2. Parts ejection detector
  3. Water removal unit
  4. Oil mist filter
  5. Beacon
  6. Non-guide bush type
  7. Rotary magic guide bush unit
  8. For pneumatic unit rotary magic guide bush
  9. Main spindle inner tube
  10. Parts ejector (Air cylinder type)
  11. Parts ejector (Spring type)
  12. Parts ejector with guide tube
  13. Parts stopper unit
  14. Coolant unit (6.9MPa/2.5MPa/0.7MPa)
  15. Coolant unit signal cable
  16. Coolant unit power cable
  17. Coolant valve
  18. Coolant pipings
  19. Manual pulse generator
  20. Transformer CE marking version
  21. CE marking version
  22. Tool Presetter
